Alphacool

Alphacool Core 70 Tube Reservoir D5 with VPP Apex PWM pump

Alphacool Core 70 Tube Reservoir D5 with VPP Apex PWM pump

Regular price $320.49 CAD
Regular price Sale price $320.49 CAD
Sale Sold out

Low stock: 2 left

Quantity
Product information

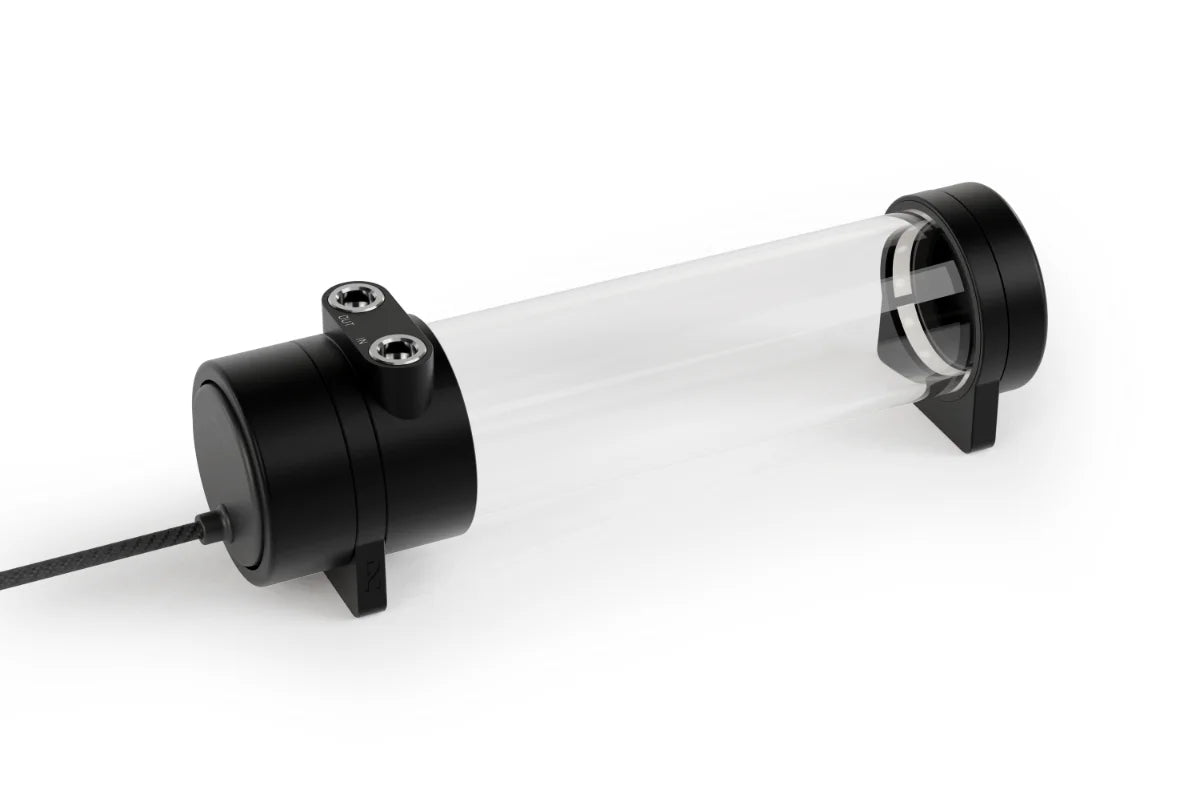

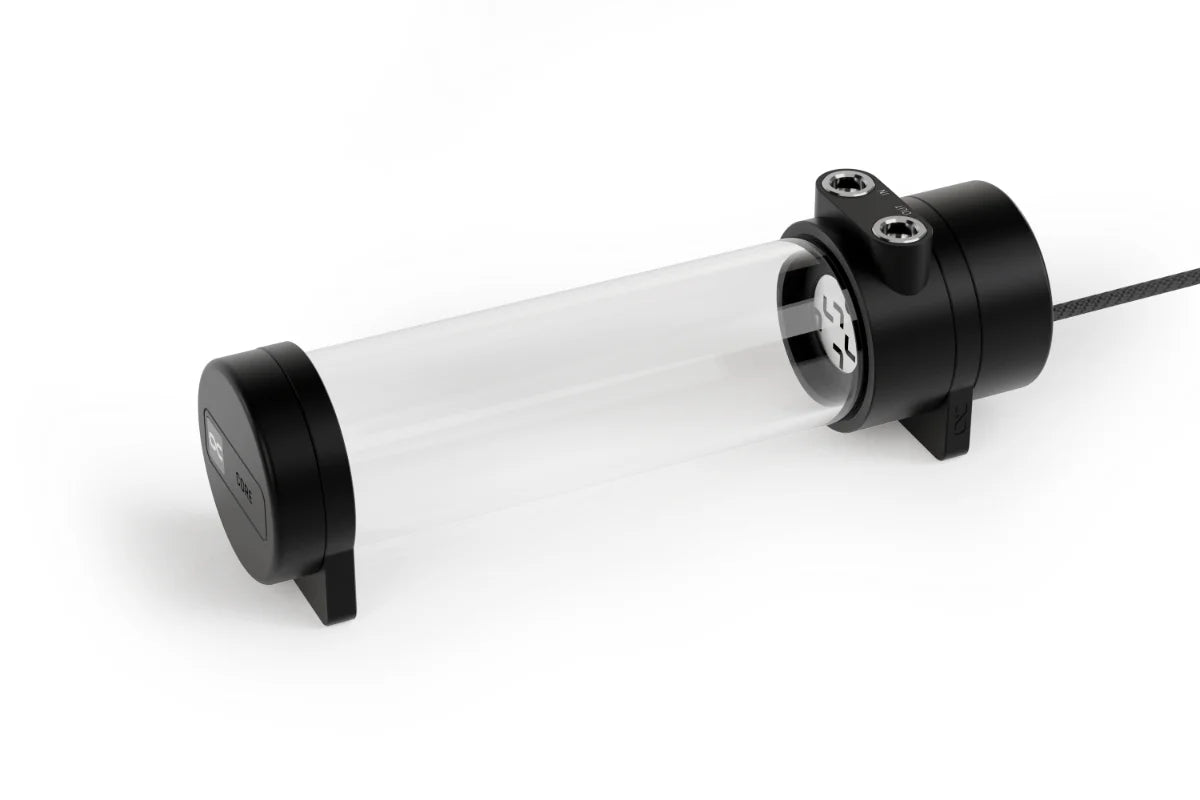

The Alphacool Core 70 Tube Reservoir is the ideal choice for modern custom water-cooling systems. Its slim design, high-quality real glass cylinder, and characteristic Core style not only enhance the visual appearance but also offer practical features for easy integration into demanding cooling loops.

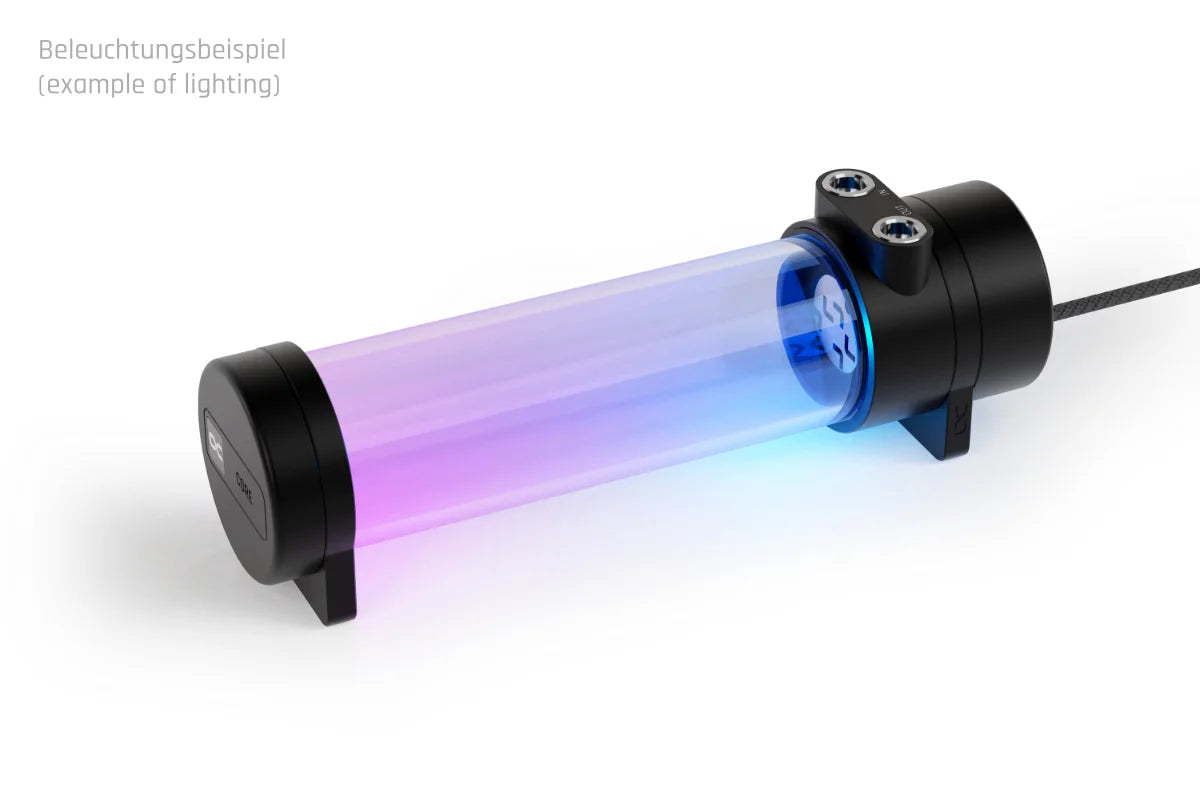

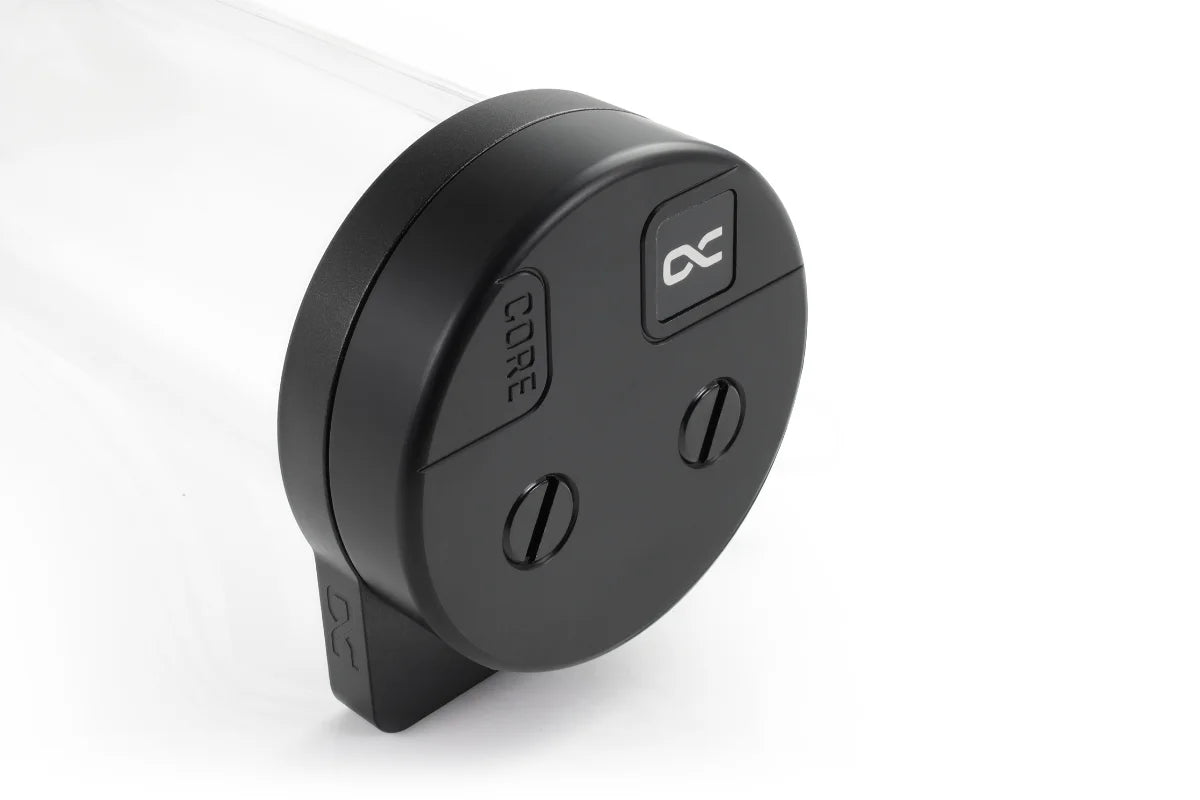

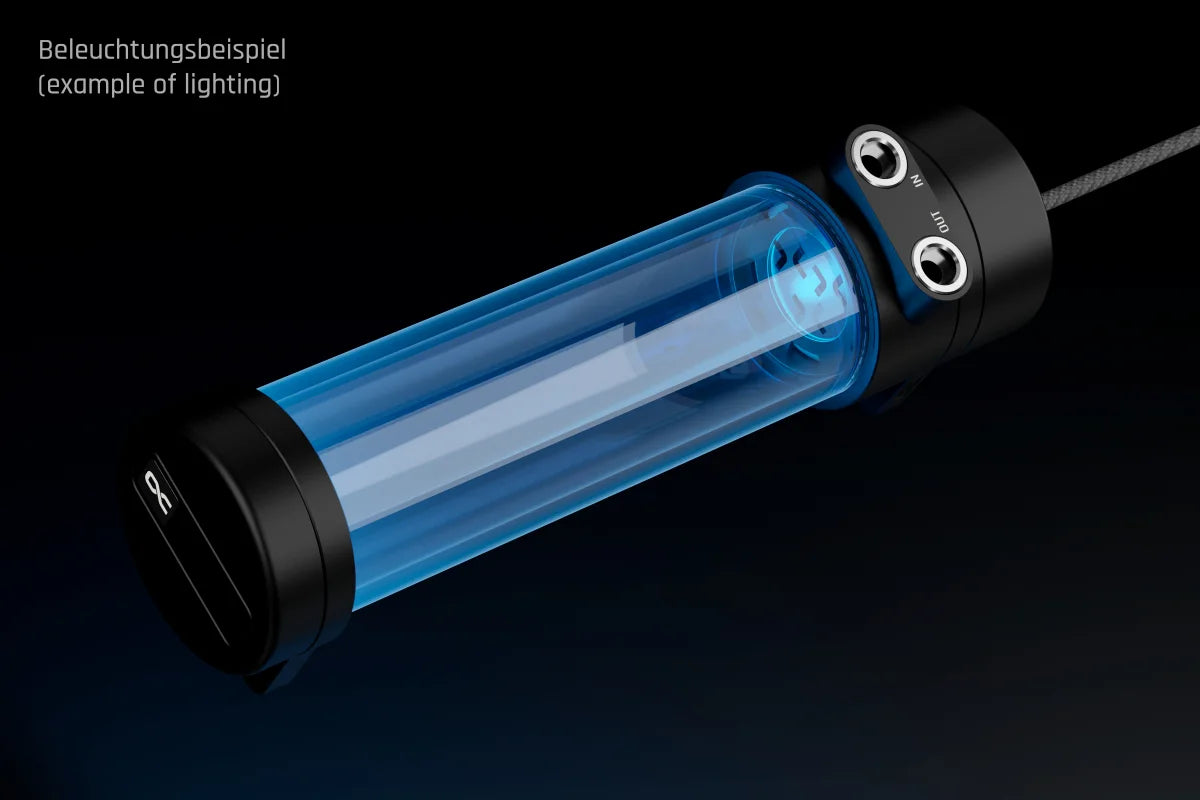

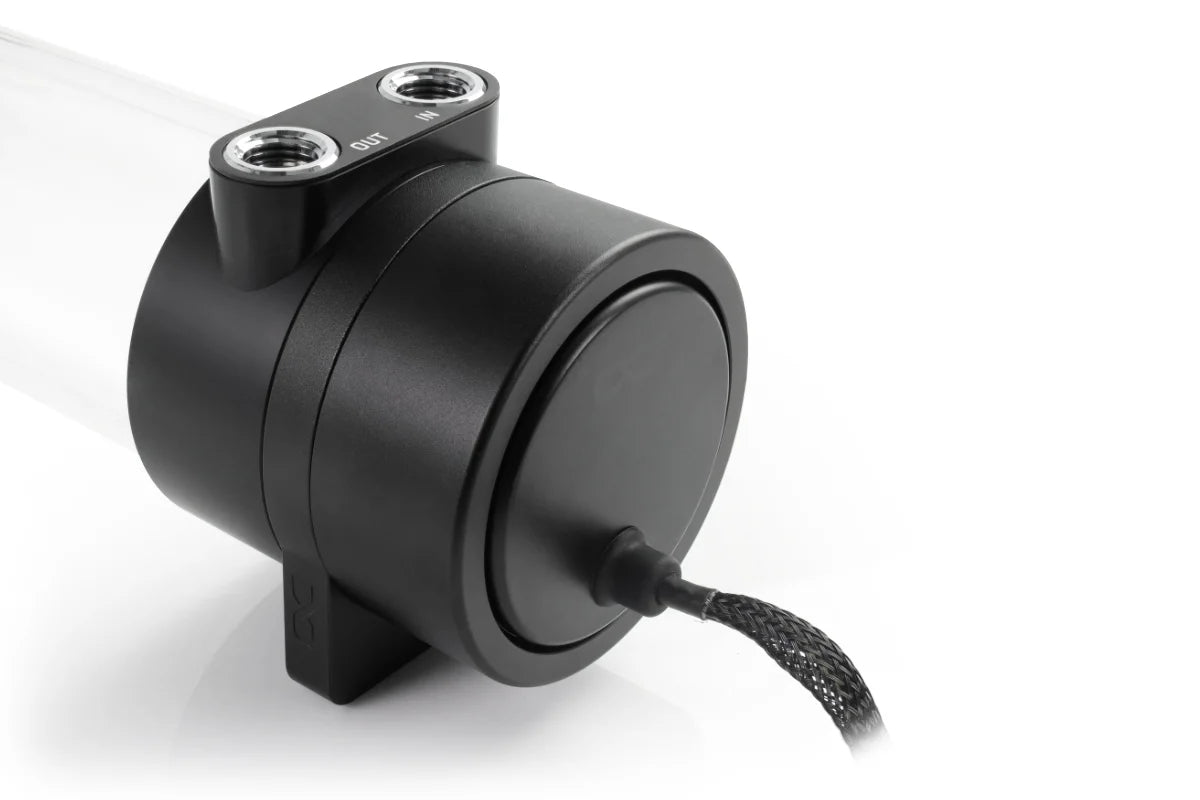

The tube reservoir combines a modern, functional design with premium materials. The real glass cylinder is the highlight of this reservoir, providing excellent durability and a clear view inside the tube and of the coolant. In combination with the integrated lighting, it creates impressive lighting effects, making the reservoir a true eye-catcher inside the system. The chrome-plated brass fittings follow the typical Core design and blend seamlessly into the overall look. Additionally, the top cover can be replaced with the included Core-design tube top, offering further customization options.

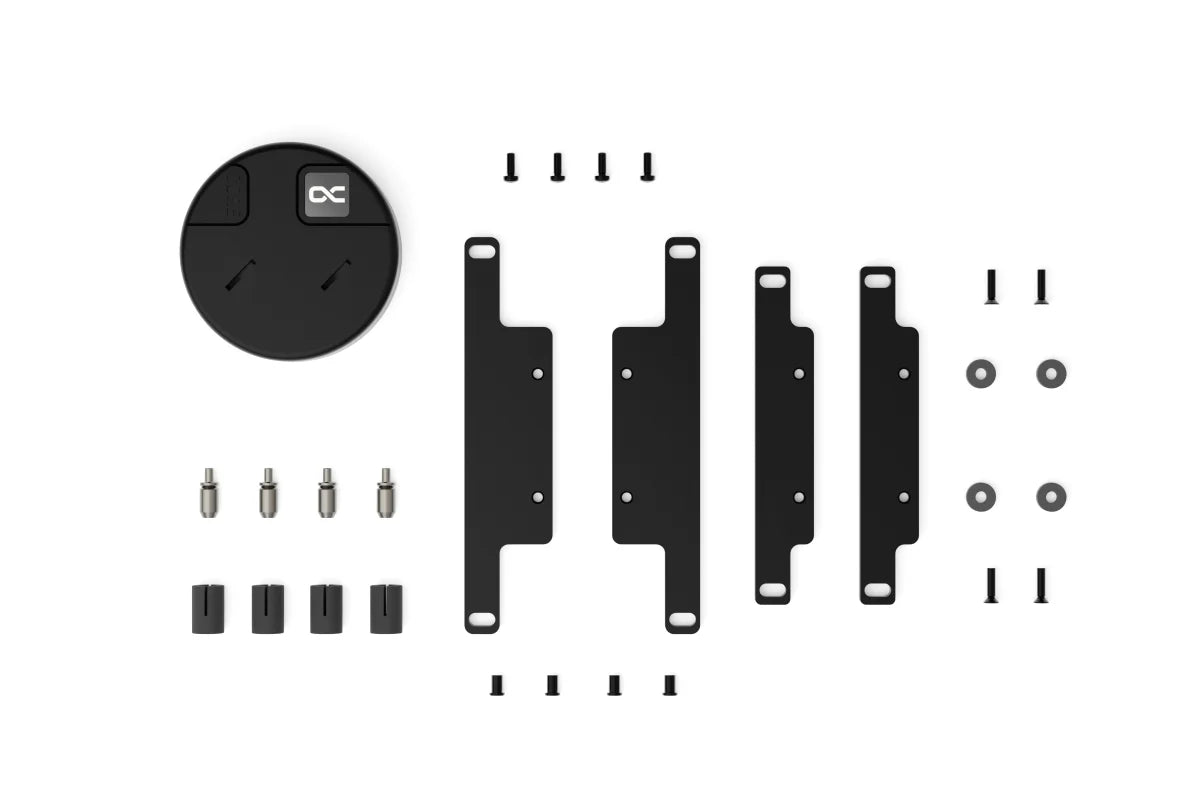

The rotatable mounting brackets provide maximum installation flexibility and allow free positioning inside the case. The interchangeable tube top makes filling and bleeding the cooling loop much easier, simplifying both installation and maintenance of the water-cooling system.

The package includes a powerful Apex VPP pump, which is designed for high performance, quiet operation, and long service life.

Note: The coolant temperature inside the reservoir must not exceed 60°C.



Technical data
L x W x H 293 x 74 x 97 mm
Pump compatibility VPP/D5
Capacity 494 ml
Material Pump top & cover acetal
Material tube glass
Connection 2x G1/4" inner thread
Tube Top connections 2 Fill-/ Drainports
Maximum water temperature 60 °C
Pressure tested 0,8 bar
Quantity of digital aRGB LEDs 13
Power digital aRGB LEDs 5V
Power connector digital aRGB LEDs 3-pin JST (male & female switch)
Weight 1080g
Color black

Technical data VPP Apex
Dimensions (L x W x H) 65 x 65 x 41mm
Material pump synthetic material
Material pump cover aluminium
Material axle ceramics
Connections 4-Pin PWM | SATA
Rotational speed 2500 - 4500 RPM
Cable lenghts 4-Pin PWM - 48cm | SATA - 48cm
Operating voltage 8-13V DC / 14W IP32
Starting voltage 12V DC
Maximum pumping head 4,25 m
Max flow 340 l/h
Max working temperature 60 °C
Net weight 276 g
color black

Warranty: 3 years
🔗 Warranty Terms




Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
