Alphacool Eisball Digital RGB - Acryl with VPP D5 Apex PWM pump

Alphacool Eisball Digital RGB - Acryl with VPP D5 Apex PWM pump

Regular price $199.99 CAD
Regular price Sale price $199.99 CAD
Sale Sold out

Low stock: 1 left

Quantity
Product information

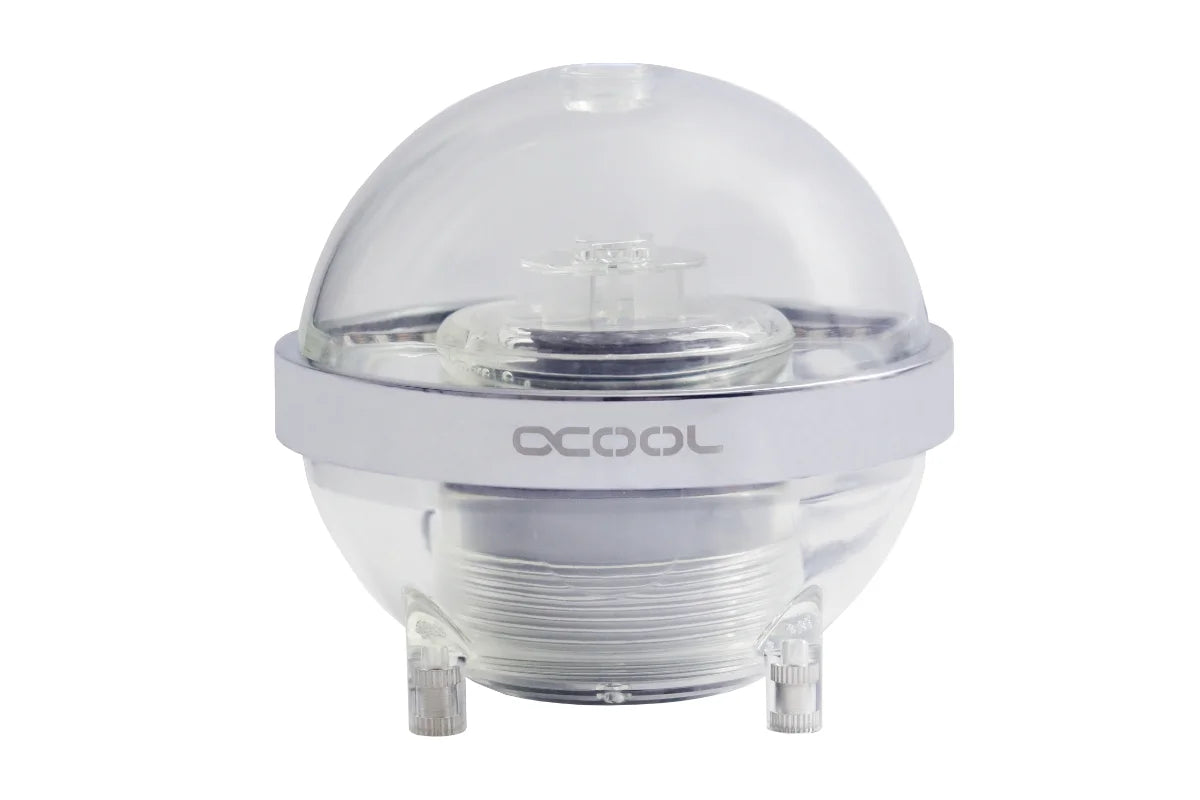

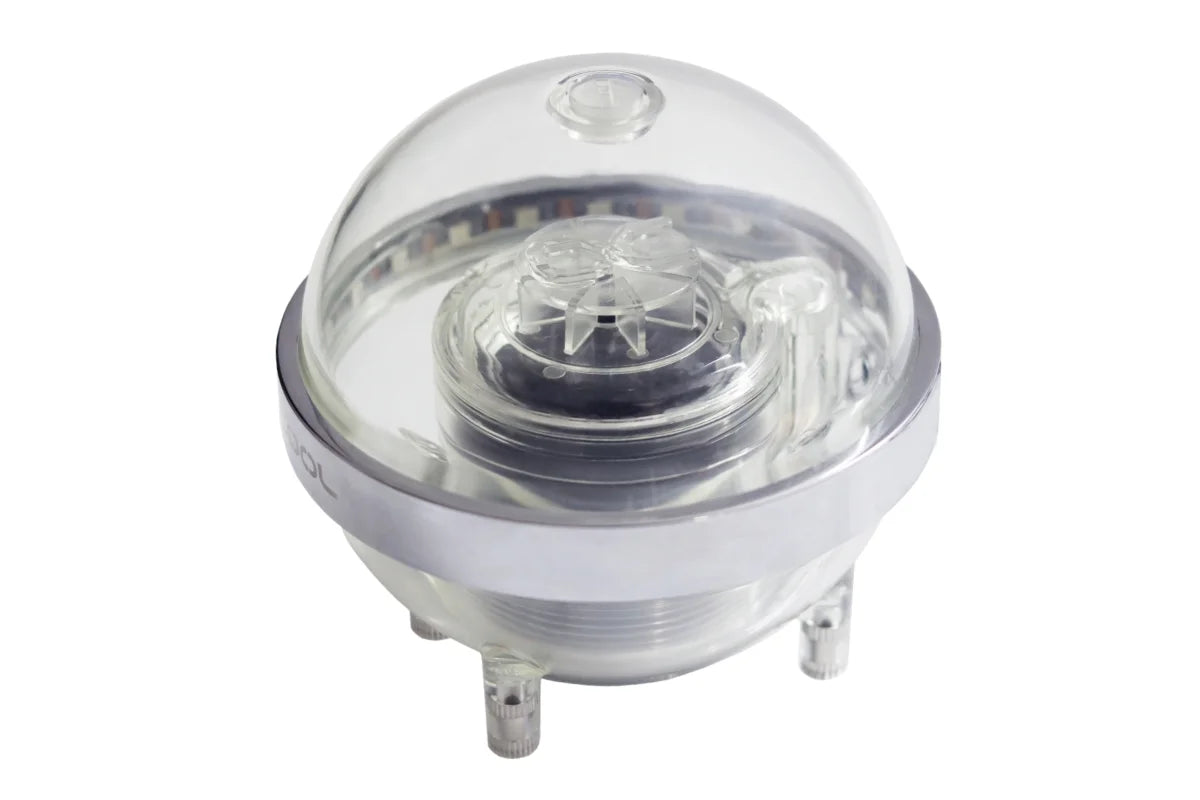

The Alphacool Eisball reservoir with integrated pump top presents itself in a unique way. A spherical reservoir has never been seen before and it opens countless new possibilities, especially in the field of modding. From static single colour lighting to maybe an R2D2 mod: there are really no limits to your creativity. Another special feature of this version: The pump is already pre-installed. Alphacool uses the proven VPP Apex Pump

Unique design and excellent lighting

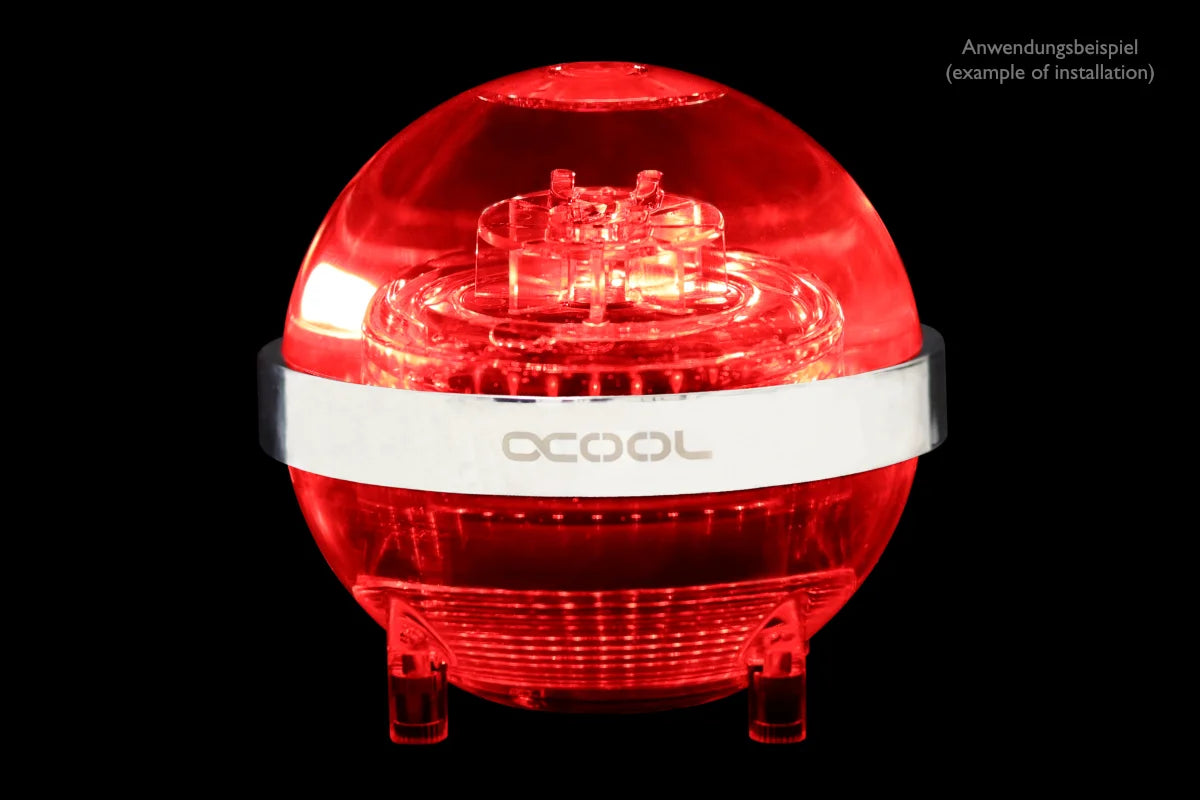

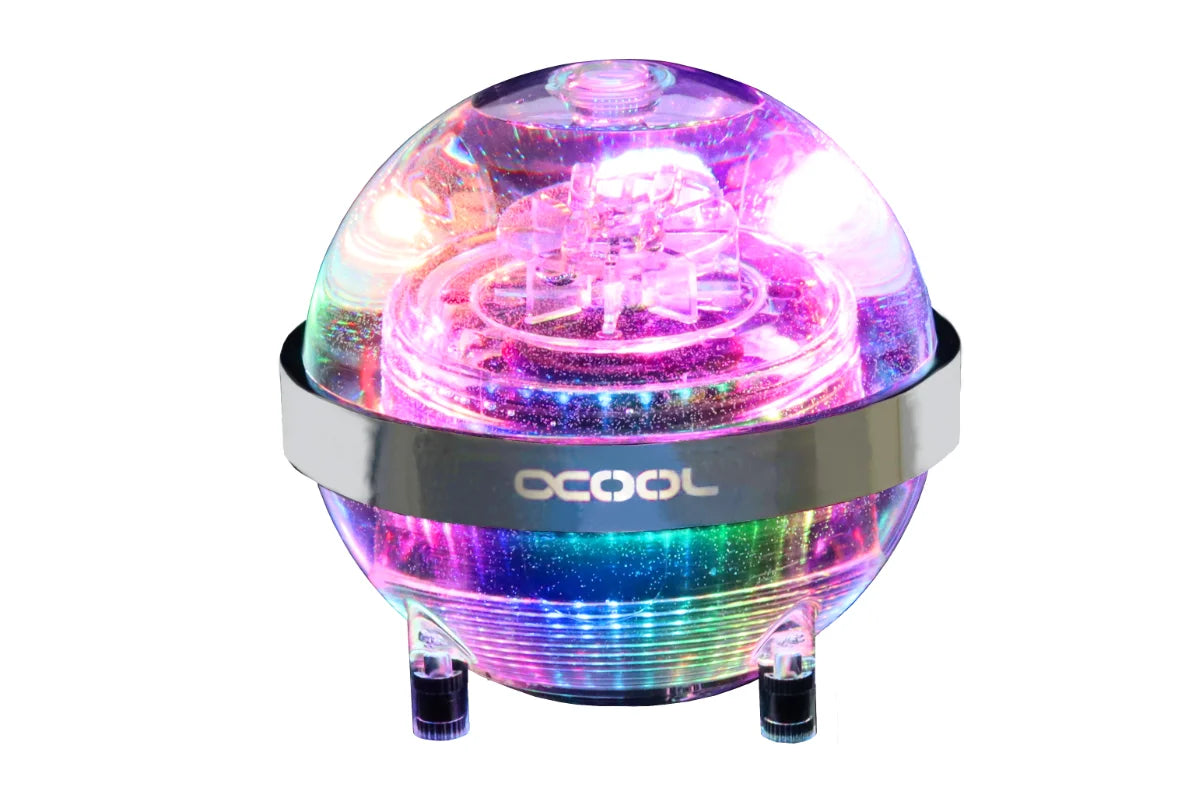

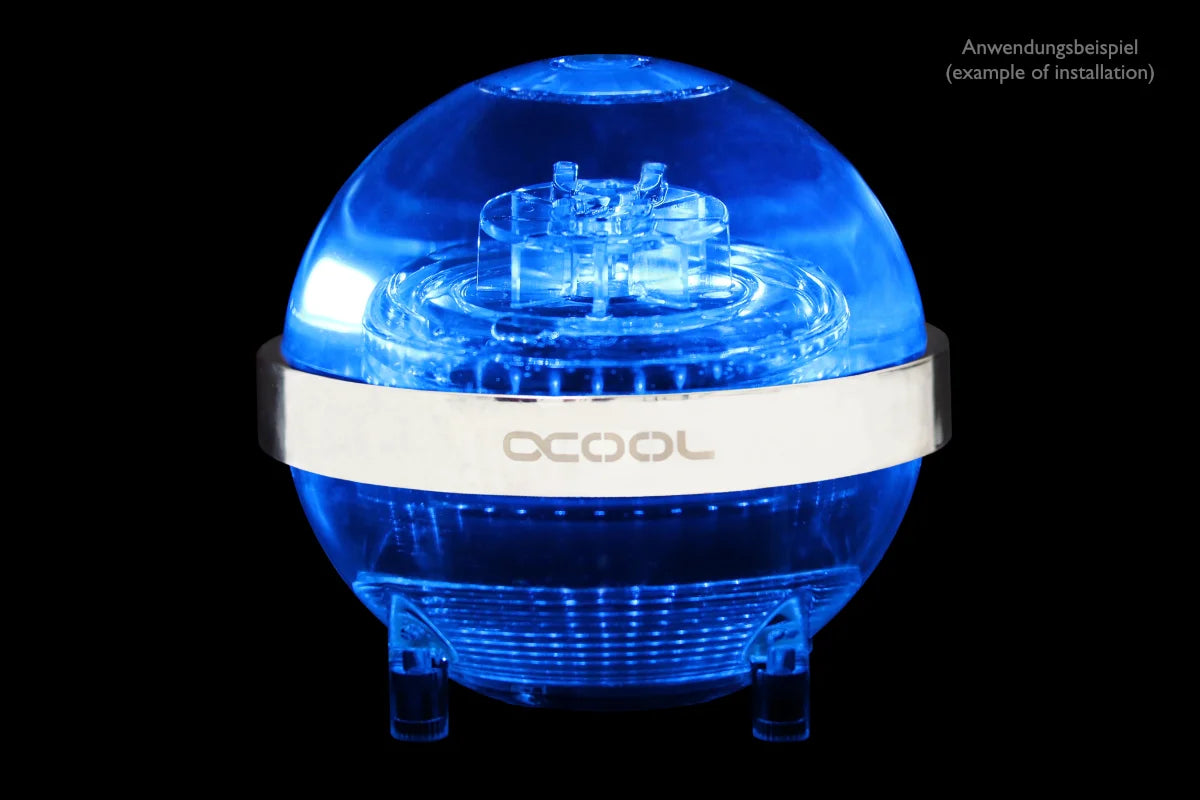

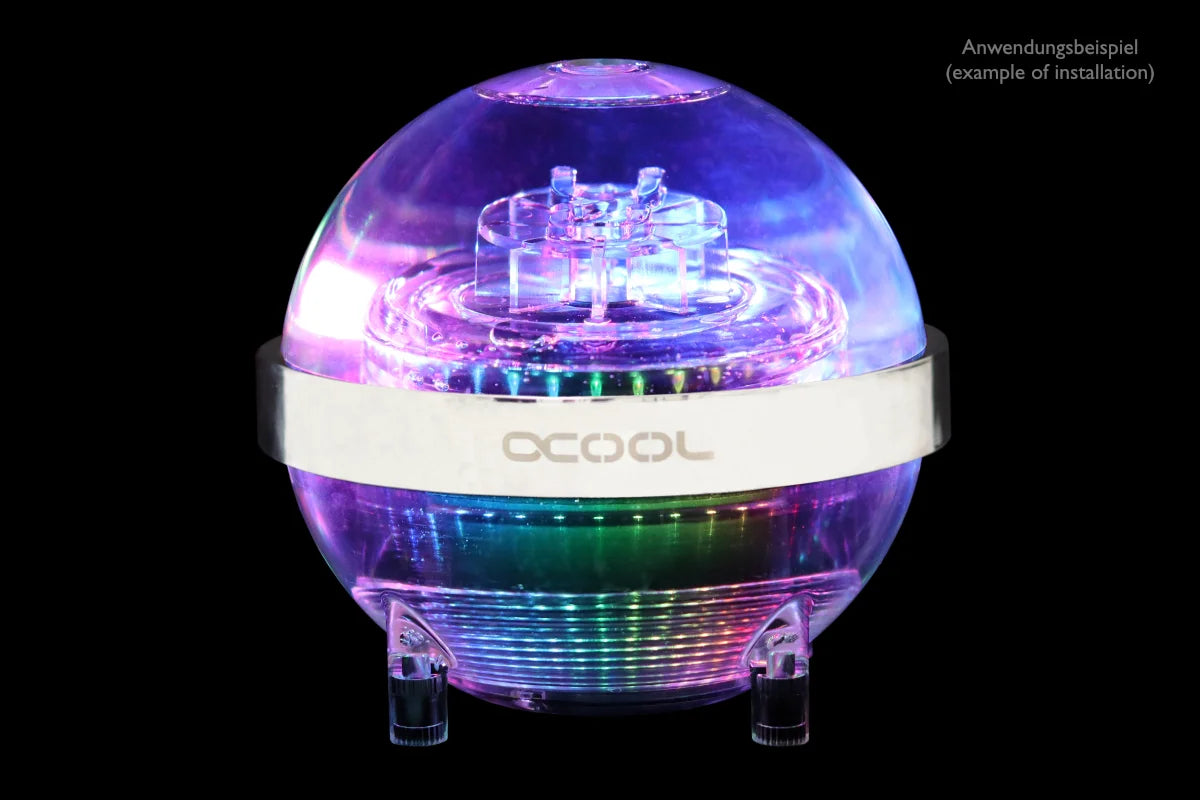

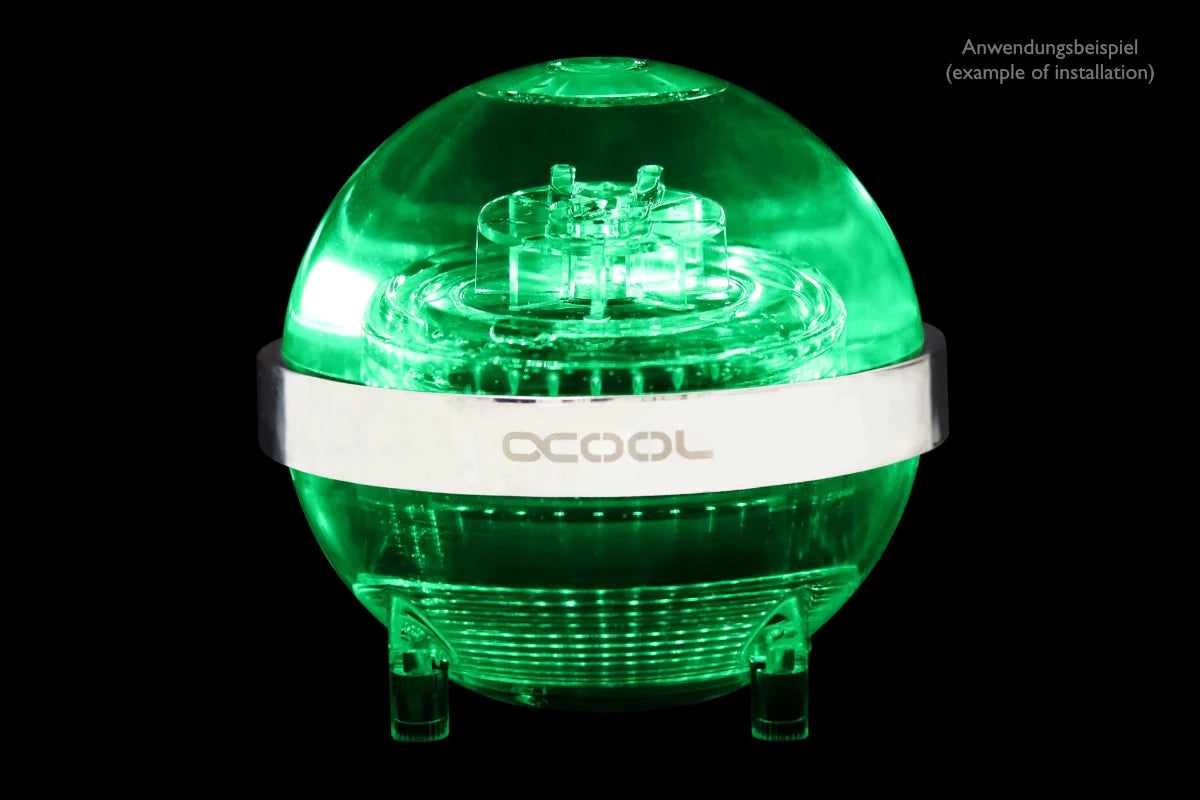

In contrast to conventional reservoirs, the Alphacool Eisball has an unprecedented spherical design. The 22 digital RGB LEDs run completely around the equator of the Eisball in a chrome ring. These provide versatile lighting effects as well as your standard colours. Of course, the device comes with a Digital RGB Controller with which enables you to customize the style and lighting of your Eisball.

Versatile mounting options

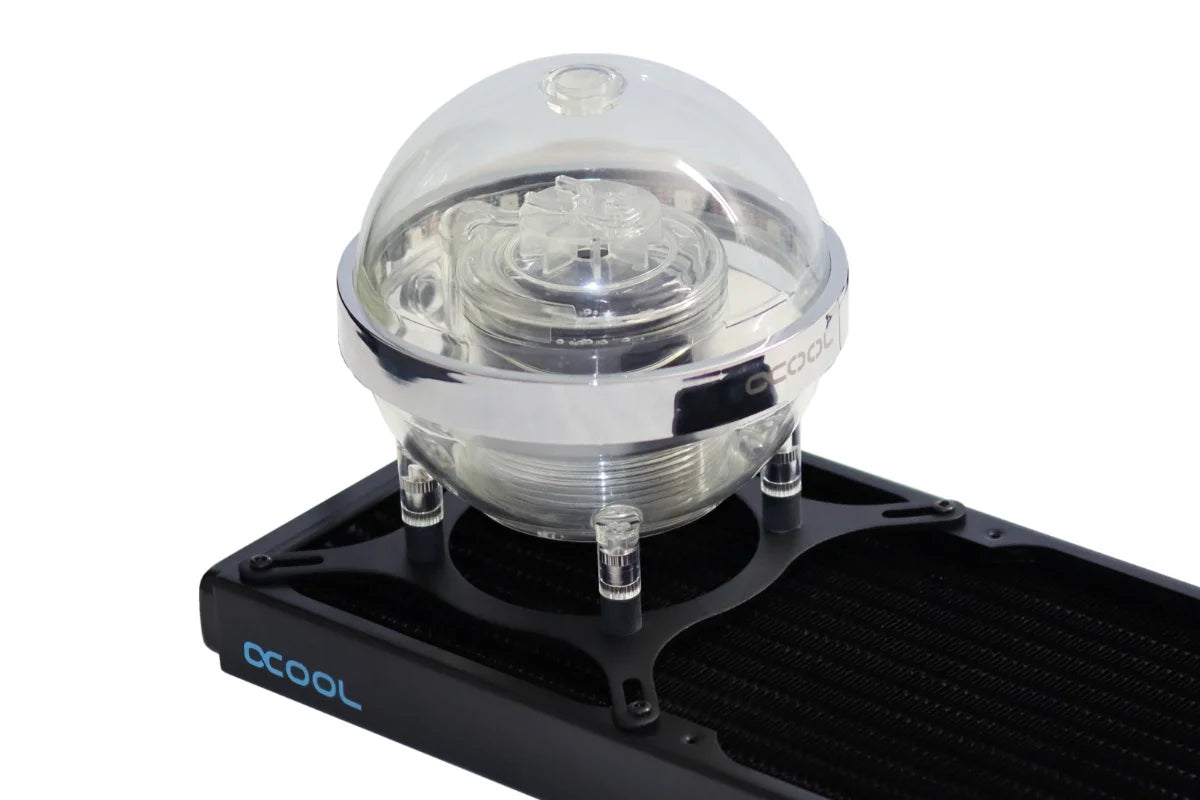

Don't let yourself be limited to a single mounting option! The included adhesive mat and 2 different mounting plates gives you many mounting options: whether on the radiator, the fan slots, or a 2.5" SSD slot you’re covered. Alternatively, the proven universal Alphacool pump mounting can also be used. In combination with the VPP755, the Alphacool Eisball can even be operated upside down. But only and exclusively with the Alphacool VPP755 pump. Standard Laing D5 pumps cannot be operated upside down due to the spherical bearing.

Where is the pump?

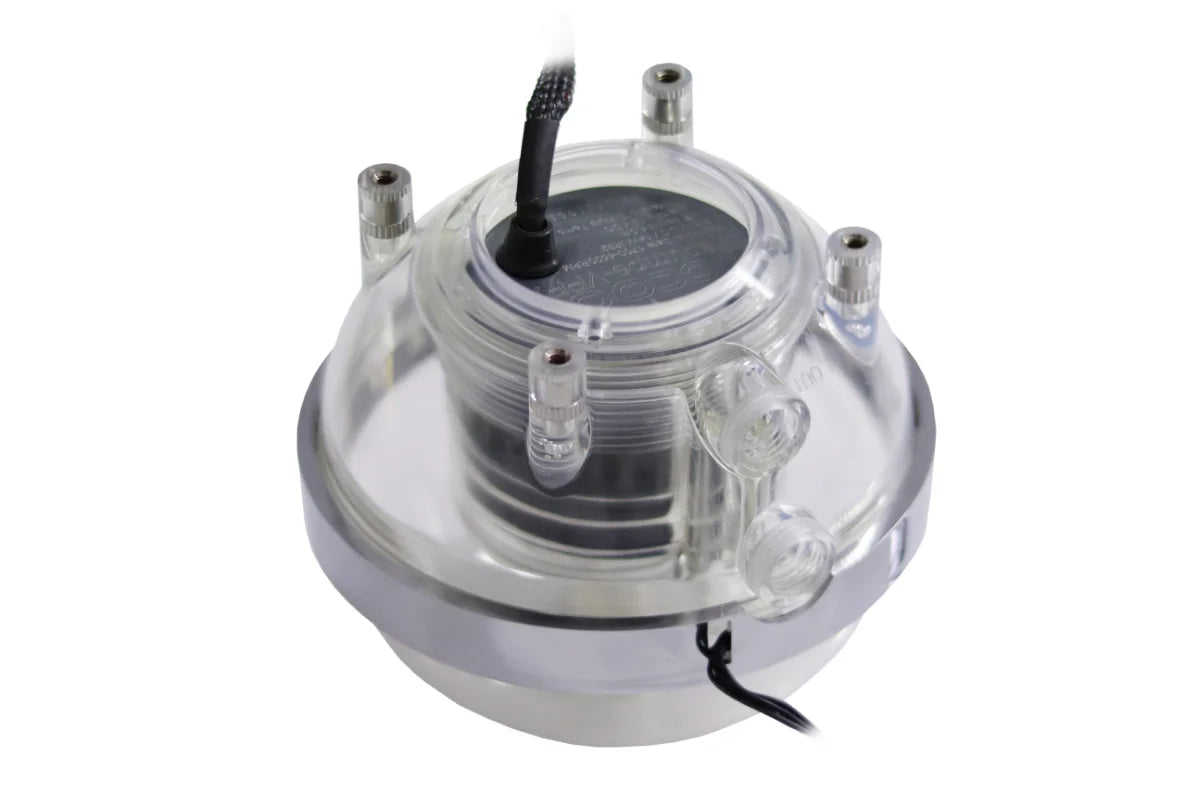

The pump disappears completely inside the Eisball. It is inserted into the Eisball from below and fastened with a special pump holder. All Alphacool's own D5 style pumps such as the VPP655 and VPP755 as well as all original Laing D5 pumps are suitable for installation.

Is the Eisball Silent Suitable?

With the Eisball, the pump is completely inside the reservoir, and is therefore surrounded by the water. The water acts as additional noise insulation. The enclosed decouplers also reduce the transmission of vibrations to a minimum. All in all, a real Silent product!

Disclaimer: In combination with the VPP755, the Alphacool Eisball can even be operated upside down. But only and exclusively with the Alphacool VPP755 pump. Standard Laing D5 pumps cannot be operated upside down due to the spherical bearing.



Technical data
LxWxH 117,51 x 128 x 128 mm
BxTxH with mounting material and decoupler 130,01 x 128 x 128 mm
Net weight 510 g
max. operating temperature 60 °C
material Eisball transparent nylon
material screw plug Brass
material pump holder Acetal
material Digital RGB ring Acetal
color Eisball transparent
color Digital RGB Ring Chrome

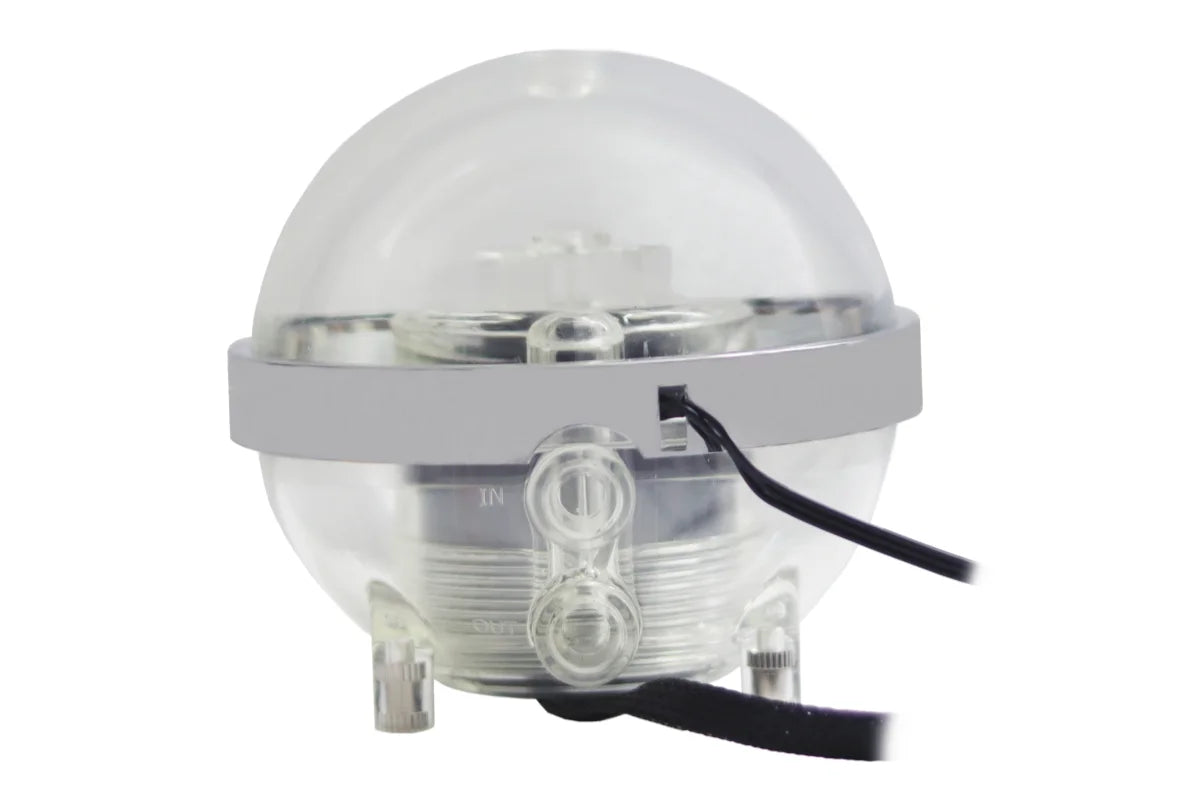

Threads IN 1x G1/4“ / OUT 1 x G1/4“
Fillport 1 x G1/4“
Digital RGB connector 4-Pin
voltage Digital RGB 5VDC
capacity 700 ml
mounting: drillings Eisball feet 4 x M4x10
mounting plate: size of drillings 8 x M3 / 4 x M4 (for decoupler)
mounting plate on radiator or fans 120 / 140 mm fans or radiators - 4 x M3x5
pumps compatibility VPP655/755 or Laing D5 pumps
