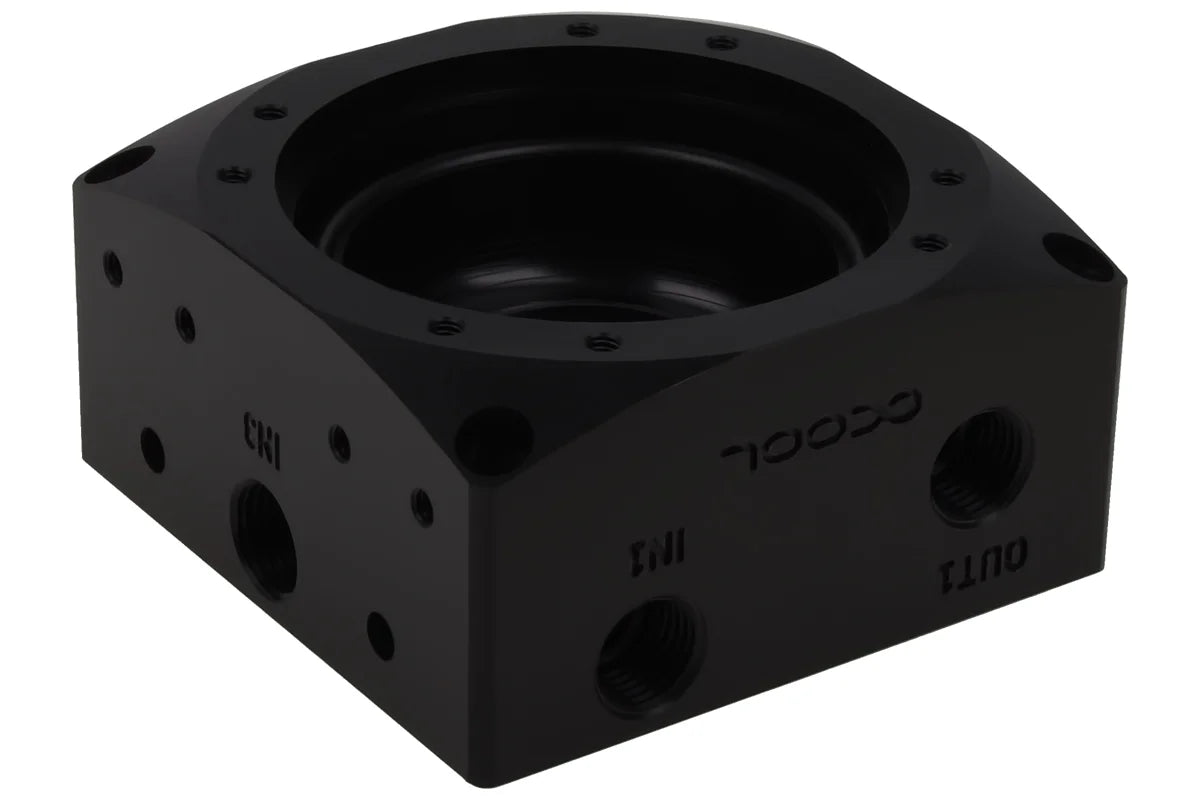

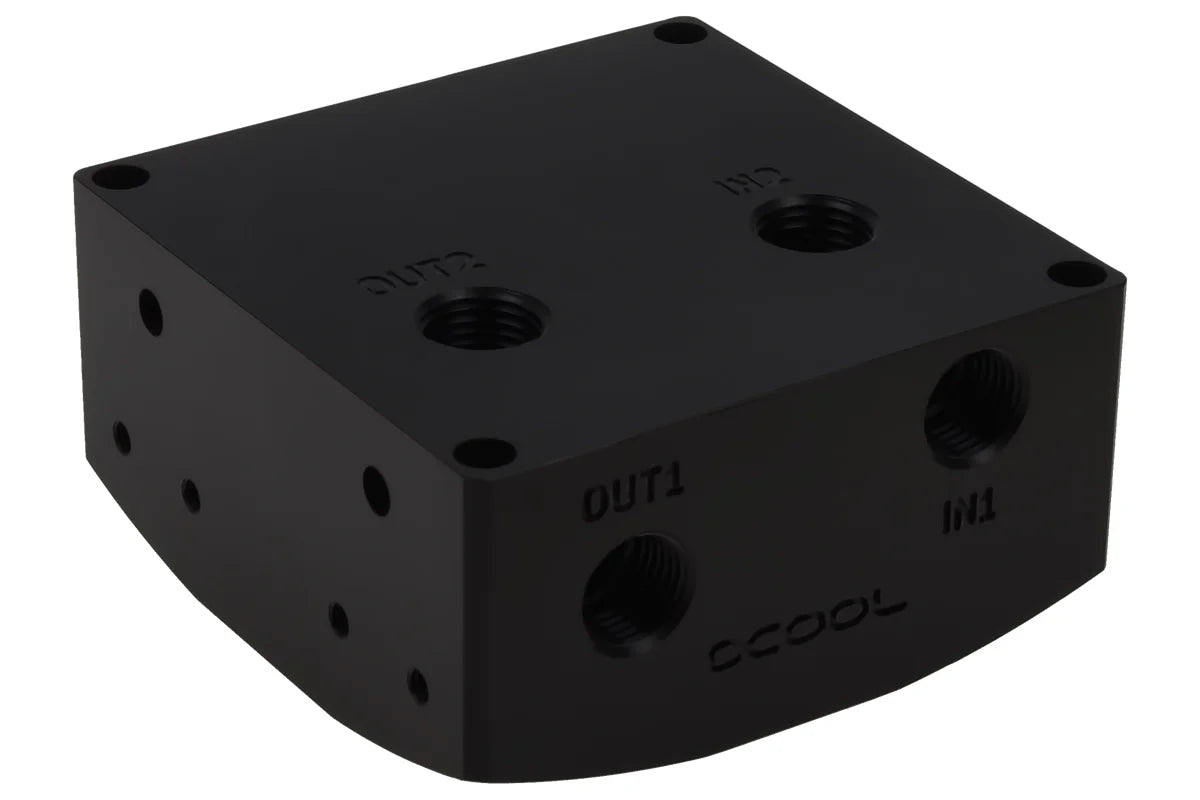

Alphacool Eisdecke D5 attachment - Black Acetal G1/4 - (VPP755/VPP655/TPP644/MCP655) V.3

This attachment has been a benchmark for years. Small improvements have been made time and again. The second major update differs in a few details, both visually and technically.

The principle

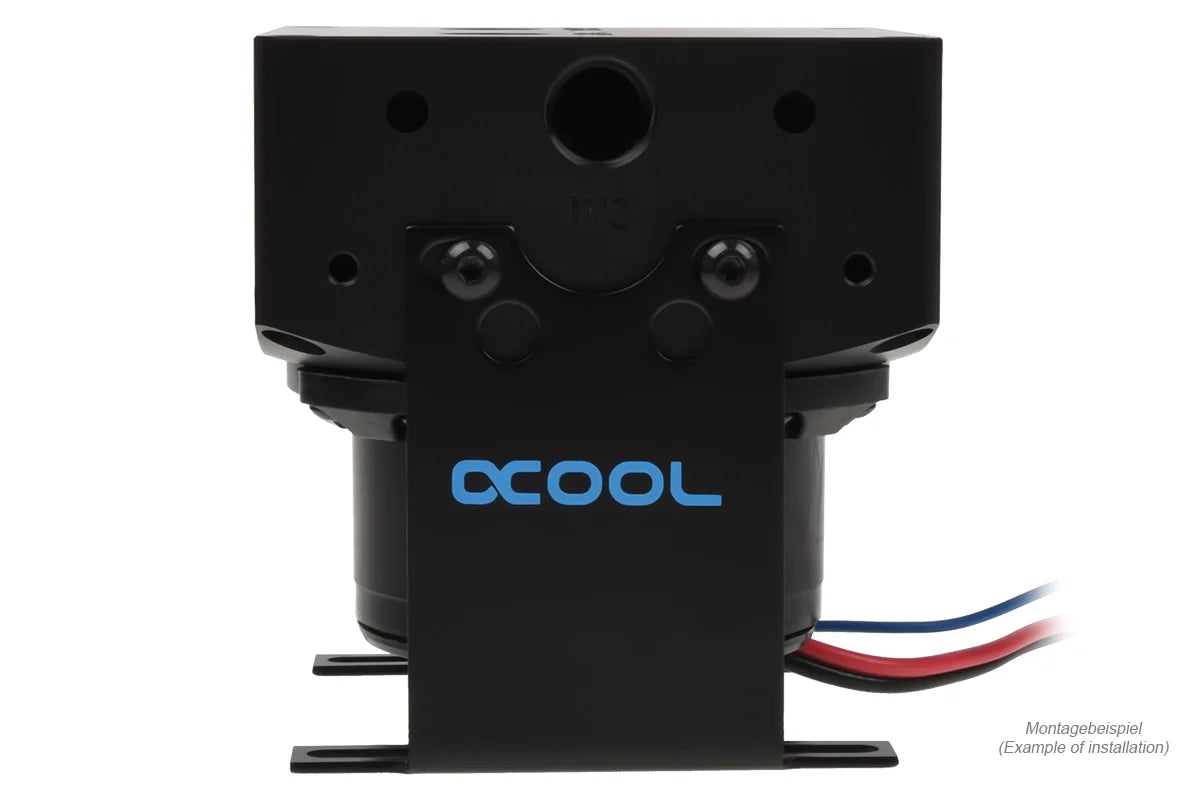

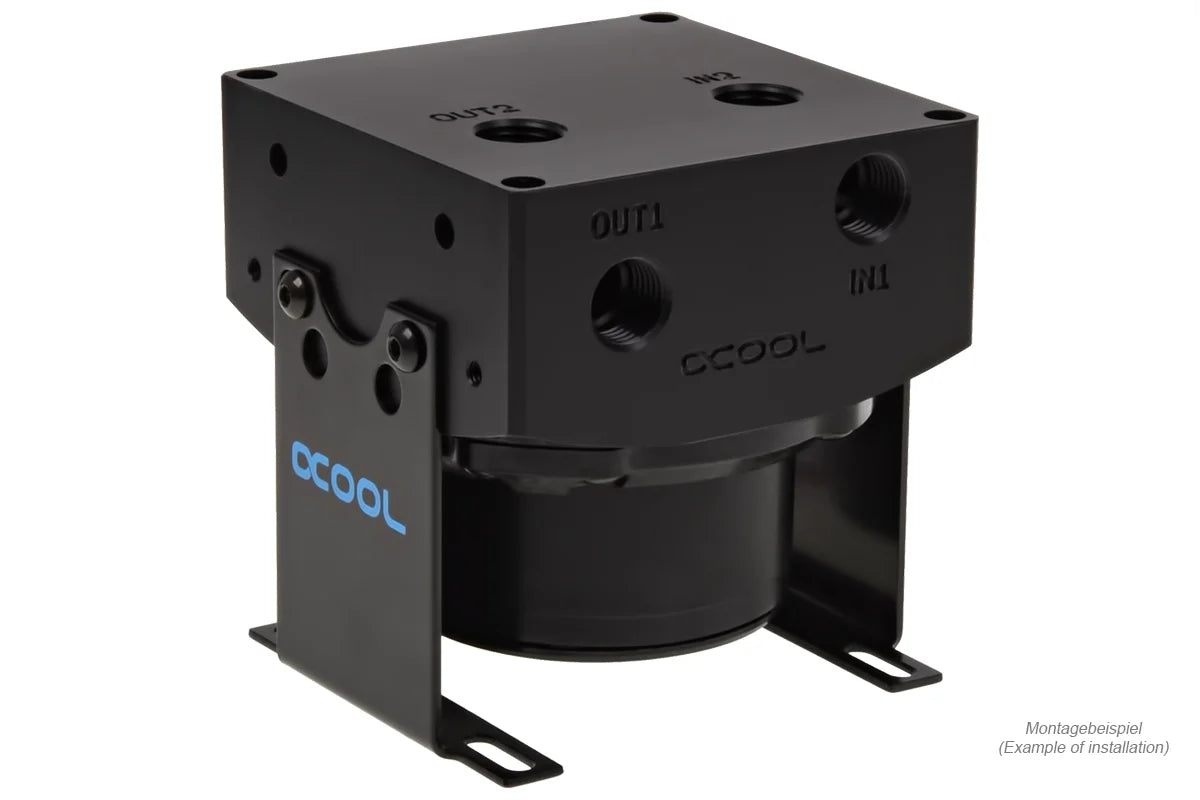

There is space for the Alphacool VPP755, Alphacool VPP655 or the Laing D5 on the bottom and inlet and outlet at the front or on the top.

For even more flexibility, the ice cover has three inlets and two outlets. Another feature is the new bracket to give the whole unit a stable stand and round off the overall visual appearance. Installation in a 3.5" slot is also possible as an option.

The attachment can be converted into a complete expansion tank with the help of the expansion tank attachment available as an accessory, which has also been revised.

Technical data

• Dimensions: 80 x 80 x 40mm
• Dimensions with feet: 83 x 80 x 87mm
• Material: Acetal
• Connections: 5x 1/4" thread

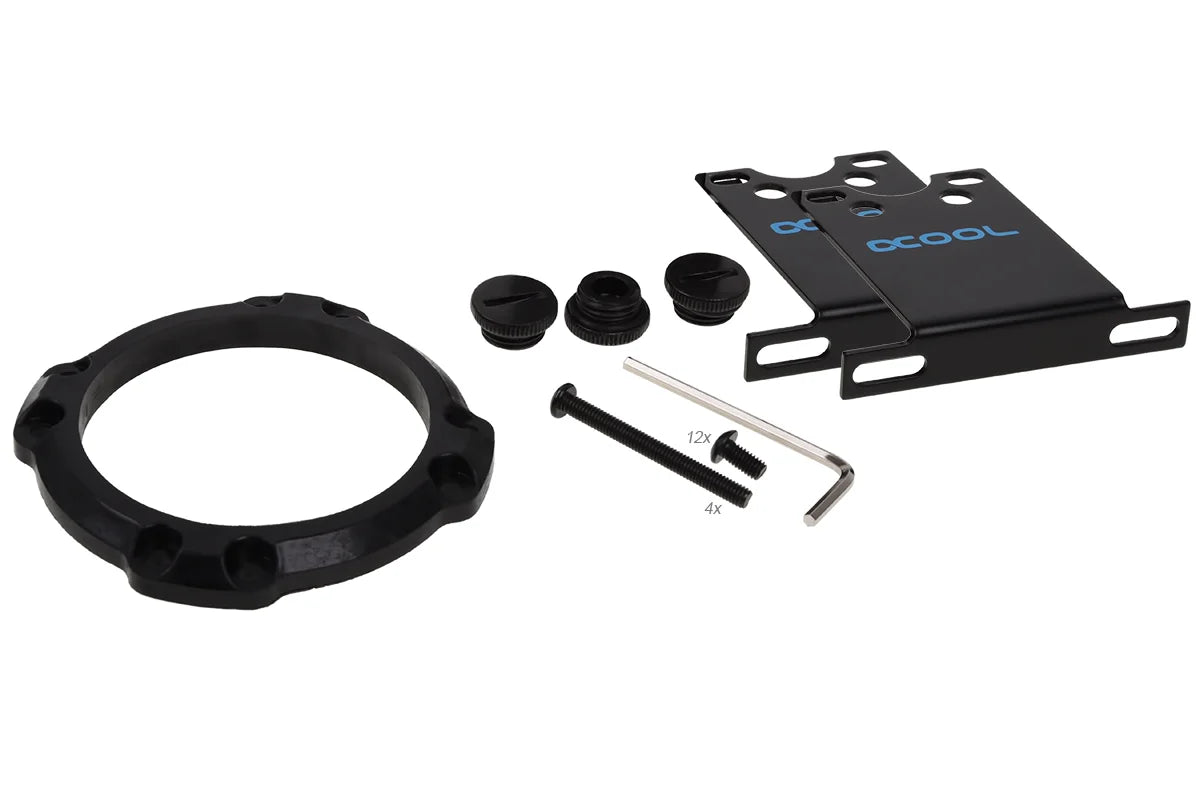

Scope of delivery

• 1x Alphacool Eisdecke D5 - (VPP755/VPP655/TPP644/MCP655) V.3
• 3x locking screw 1/4"
• 2x feet
• Mounting material

Notice
Not suitable for continuous use with liquids containing titanium dioxide or glycerine. Many pastel colors typically use these additives.

Assembly instructions

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
